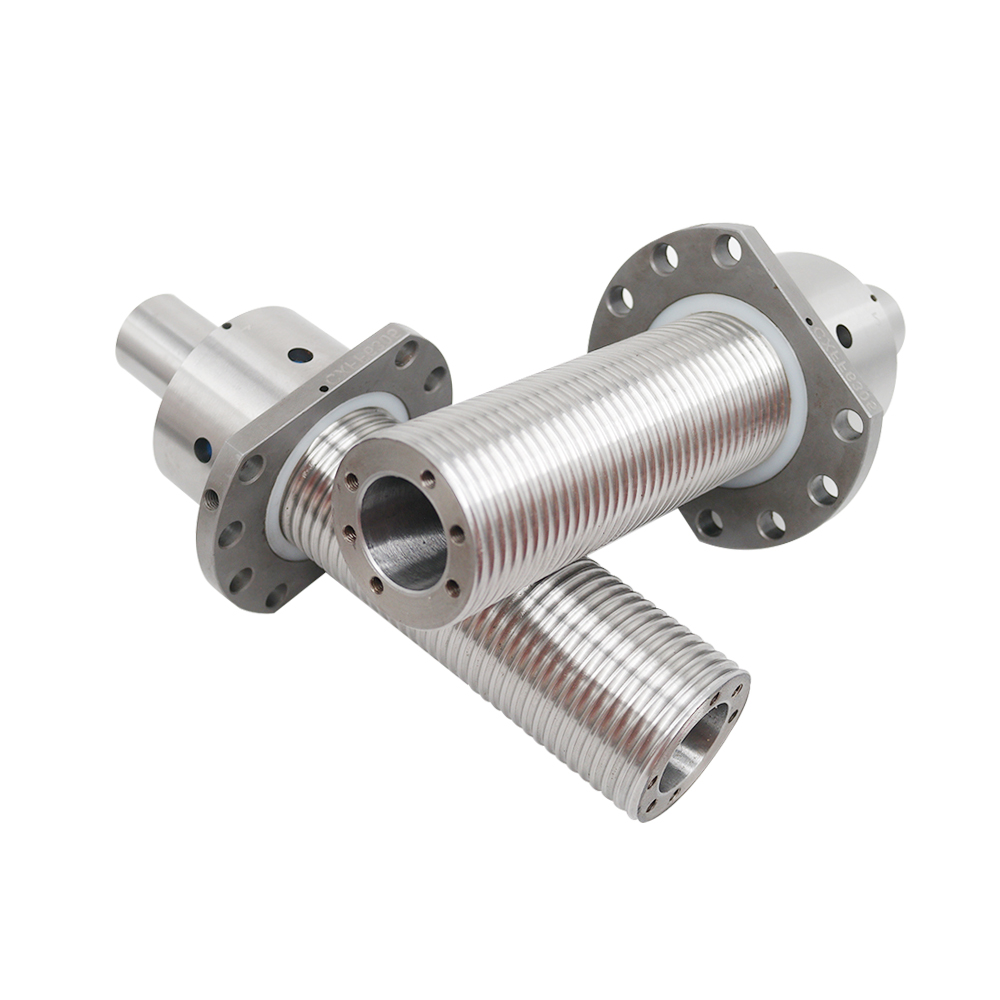

Ball screw custom machining
According to the drawing 1:1 custom processing ball screw, professional non-standard lead screw supplier, exported to more than 20 countries.
- Material: bearing steel/stainless steel/titanium alloy, etc
- Hardness HRC: 62~66
- Precision: C7 C5 C3 C2
- Process: grinding
- Customization cycle: 3~60days
- Packing: bubble wrap + wooden case
Product Details
Ball screw custom machining: STUON has more than 15 years of experience, about non-standard, special screw customization.

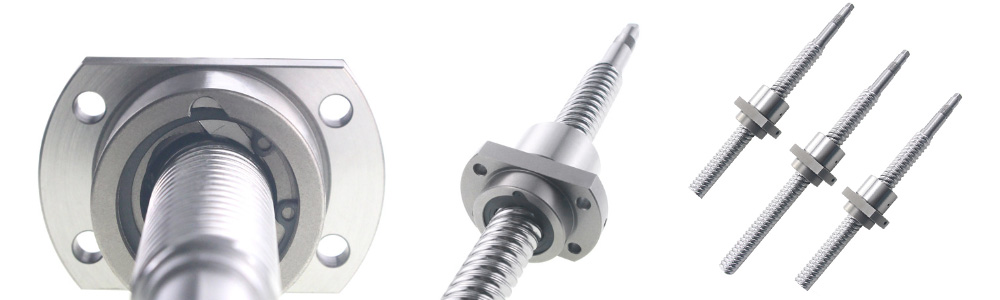

Ballscrew use type
High-speed ball screw: suitable for CNC machinery, precision tool machines, industrial machinery, ect.
Heavy-duty ball screw: suitable for all-electric injection molding machine, punching machine. Semiconductor manufacturing device, heavy-duty brake. Industrial machinery, forging machinery and other occasions that need to bear large loads.
Self-lubricating ball screw: with removable oil removal device, no lubrication piping system. Suitable for applications that need to reduce maintenance costs.
Silent ball screw: with special groove type ball spacer ring to suppress noise, suitable for low noise environment.
Ball screw precision
Lead error value of any 300mm back and forth movement of ball screw:
| Precision | Error value | Material |
| C0 | 0.0035mm | S/S, bearing steel, etc |
| C1 | 0.005mm | / |
| C2 | 0.007mm | / |
| C3 | 0.008mm | / |
| C5 | 0.018mm | / |
| C7 | 0.05mm | / |
| C10 | 0.21mm | / |
Under JIS standard, the accuracy grade of ball screw is divided into C0, C1, C3, C5, C7, C10 six grades.
Traditionally there were only six grades, but now C2 and C6 grades have emerged in areas such as Taiwan.
Grinding screw, C5 precision has met 80% of customer needs, about ball screw custom machining.

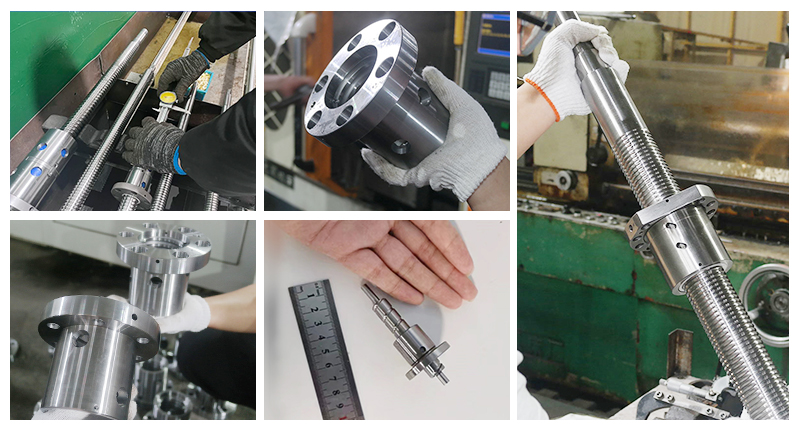

Lead screw case
Our Advantages:
- High precision, long life
- Short production cycle
- Low prices
- More than 15 years of processing experience
- Online service 7*24 hours

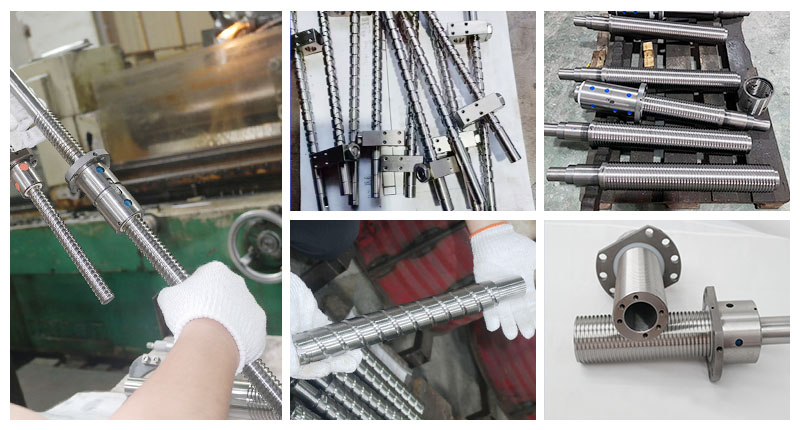

Ball screw customization
Of course, STUON has mass-produced ball screws that perfectly Replace HIWIN, TBI, PMI, THK, and others.
